Loading Plain Paper in Cassette

You can load plain paper in the cassette.

• Watch the movie

1. Prepare paper.

   Align the edges of paper. If paper is curled, flatten it.



   Note

   • Align the edges of paper neatly before loading. Loading paper without aligning the edges may cause paper jams.

   • If paper is curled, hold the curled corners and gently bend them in the opposite direction until the paper becomes completely flat.

     For details on how to flatten curled paper, see Check3 in Printed Surface Is Smudged/Scratched/Ink Blots/Paper Curl/Paper Is Smudged During Automatic 2-sided Printing.

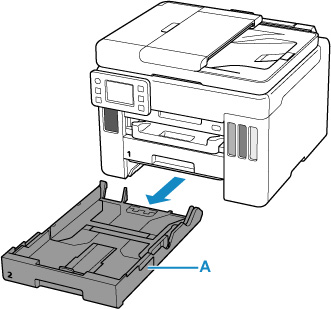

2. Pull out the cassette (A) from the printer.

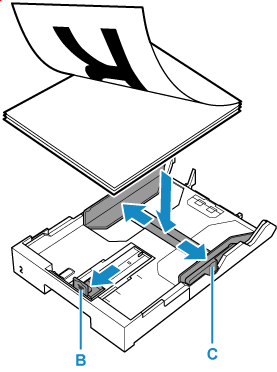

3. Slide paper guides (B) in front and (C) on right to open guides.

4. Load paper stack in portrait orientation WITH PRINT SIDE FACING DOWN, and place it in center of cassette.



   Important

   • Always load paper in portrait orientation (D). Loading paper in landscape orientation (E) can cause paper jams.



   Note

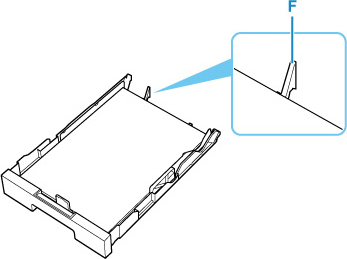

   • Align the paper stack with the edge of the cassette.

     If the paper stack is in contact with the protrusion (F), the paper may not be fed properly.

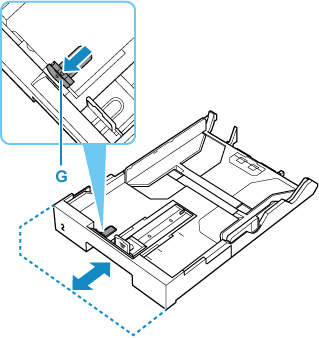

   • To load Legal-sized paper in Cassette 2, pull the resizing tab (G) forward to extend the cassette.

   • To load paper sizes other than Legal, use the cassette in its condensed state. To condense the cassette, pull the resizing tab (G) forward.

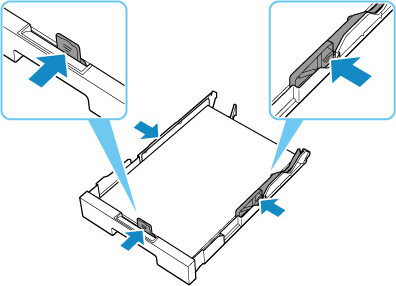

5. Slide front paper guide to align it with paper stack.

   Align paper guide with where it clicks into place.

6. Slide right paper guide to align it with paper stack.

   Do not slide the paper guide too hard against the paper. The paper may not be fed properly.



   Note

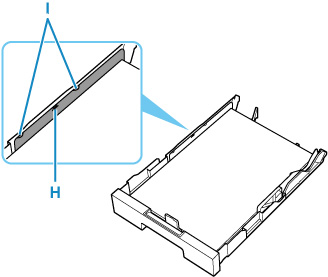

   • Do not load sheets of paper higher than the load limit mark (H).

   • Keep the paper stack height below the tabs (I) of the paper guides.

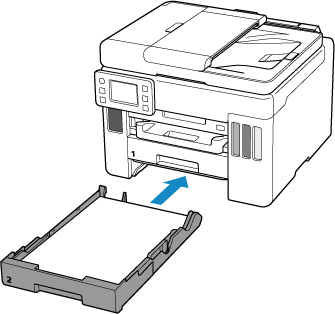

7. Insert cassette into printer.

   Push the cassette into the printer until it stops.



   After inserting the cassette into the printer, the paper setting confirmation screen for the cassette appears on the touch screen.

   Note

   • When paper larger than A4 is loaded, the cassette is extended and thus stops in a protruding position from the printer. Forcefully pushing it in may cause damage to the printer or the cassette.



8. If page size on touch screen matches size of paper loaded in cassette, select Yes.

   If not, select Change to change the setting in accordance with the size of the loaded paper.



9. Pull out a paper output tray (J).



Note

• To prevent incorrect printing, this printer has a function that detects whether the settings for the paper loaded in the cassette matches the paper settings. Before printing, make print settings in accordance with the paper settings. When this function is enabled, an error message is displayed if these settings do not match to prevent incorrect printing. When this error message is displayed, check and correct the paper settings.
